CONVENTIONAL UNIVERSAL GRINDING MACHINES

RUA

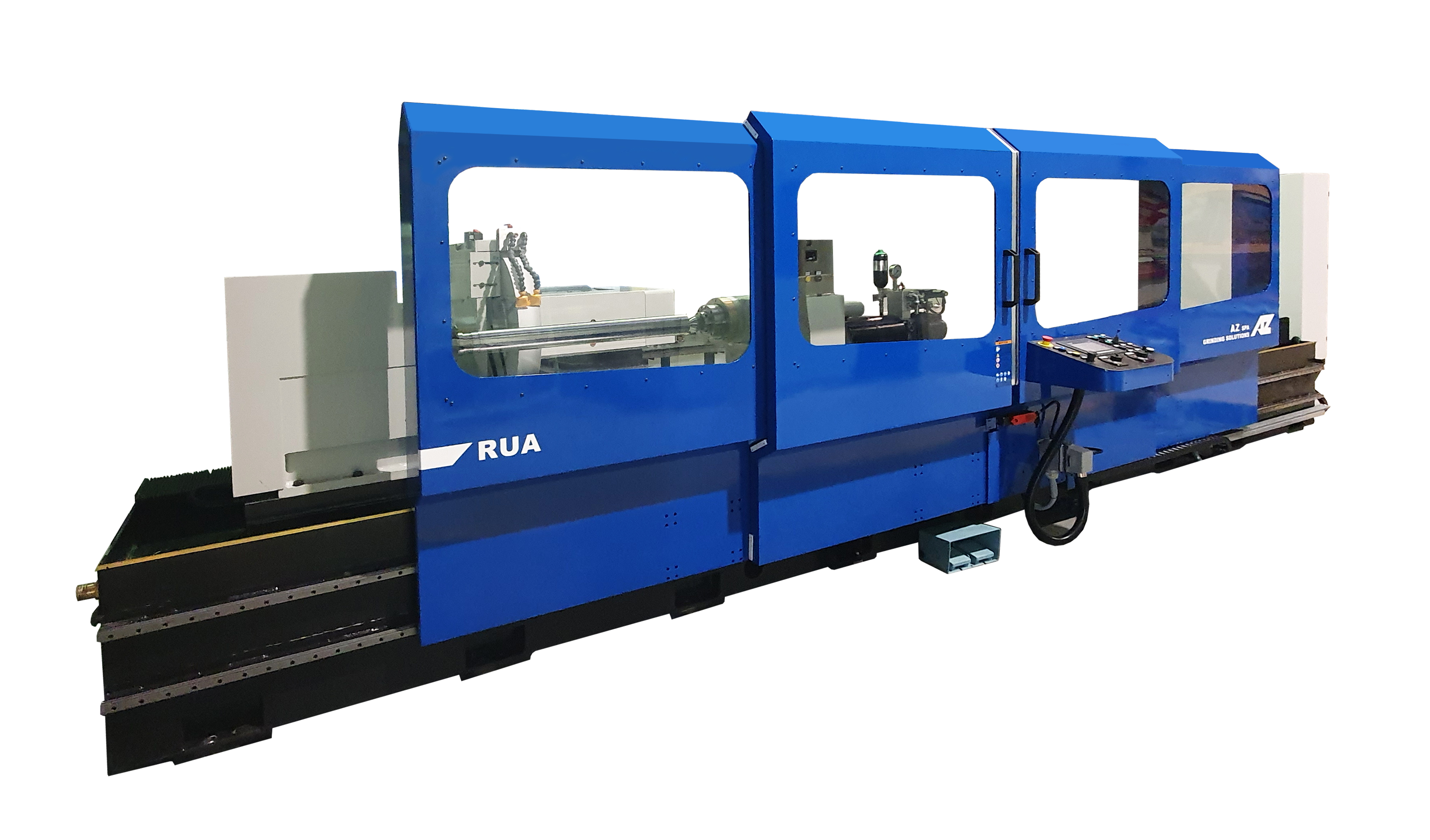

CONVENTIONAL UNIVERSAL GRINDING MACHINE
Distance between centers from 1000 to 3500 [mm]
Max diameter admitted from 400 to 700 [mm]
Centers height from table from 225 to 400 [mm]
OD Grinding wheel diameter range from 508 to 760 [mm]
The machine is designed according to the customer requests
Max diameter admitted from 400 to 700 [mm]
Centers height from table from 225 to 400 [mm]
OD Grinding wheel diameter range from 508 to 760 [mm]
The machine is designed according to the customer requests
RUA is a conventional universal grinding machine PLC controlled (interpolation control G-CODE) by electronic encoders that perform multiple working functions. The machine is designed with grinding wheel moves on base by ball screw system and linear guideways. The workpiece is clamped by headstock fixed on the base and tailstock moving on table support by linear guideways. This machine configuration permits to reduce the overall machine dimensions compared to moving table configuration. Base is in composite material specifically designed to obtain the best result between structural deformations and vibration dumping.
