![crankshaft-white-01.png](/images/2017/06/13/crankshaft-white-01.png)
LENGTH
1600 mm
![swing-white-01.png](/images/2017/06/14/swing-white-01.png)
SWING
540 mm
![wheelheadmove-01.png](/images/2017/06/13/wheelheadmove-01.png)
WHEELHEAD MOVE

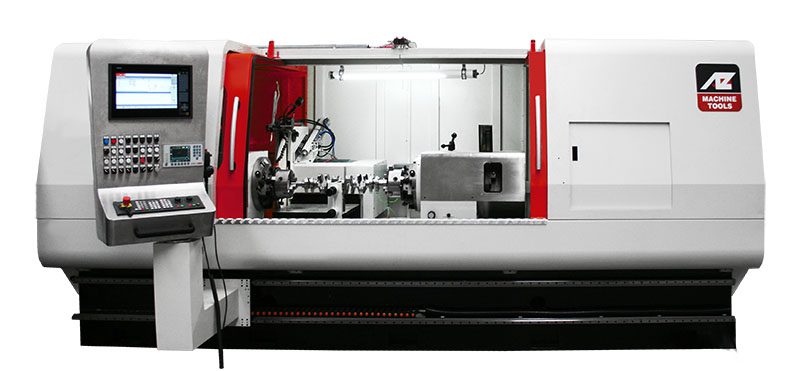

CGX270-1600
CNC Crankshafts Grinding Machine
This cranskshaft grinding machine has been designed for different requirements: reconditioning and production of individual pieces. Thanks to its flexibility and its options, this machine offers a great speed of use and manufacture, ensuring accuracy and repeatability.
SPECIFICATIONS
Height of centers 270 [mm]
Max distance between centers 1600 [mm]
Swing over table 540 [mm]
Grinding wheel diameter 710 [mm]
Machine configuration depend on customer requests.
Max distance between centers 1600 [mm]
Swing over table 540 [mm]
Grinding wheel diameter 710 [mm]
Machine configuration depend on customer requests.
CONSTRUCTIVE FEATURES
TECHNOLOGY
APPLICATIONS
MODULAR MULTI-FUNCTION SYSTEM FOR GRINDING PROCESS CONTROL
gap control
shape control
dressing control
crash control
wheel balancing control with automatic balancing device
in-process diameter control with 2 points measurement
workpiece positioning control with touch probe
![touchprobe.jpg](/images/2018/02/07/touchprobe.jpg)
![rettifica-cgx.jpg](/images/2018/02/07/rettifica-cgx.jpg)
