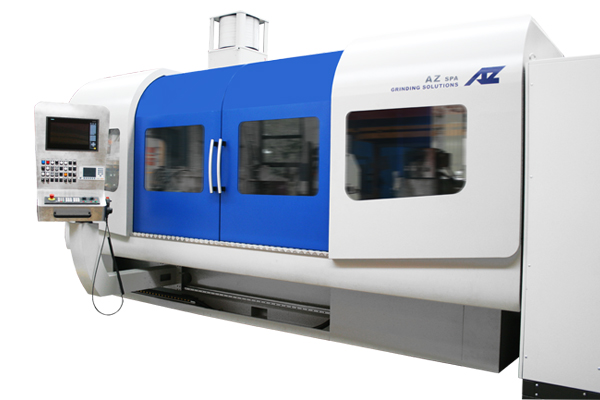

RUX1800
CNC Universal Grinding Machine projected for pneumatic hammers
RUX is an universal grinding machine CNC controlled. The machine is designed with grinding wheel moves on base by ball screw system and linear guideways. The workpiece is clamped by headstock fixed on the base and tailstock moves easily on the table. Base is specifically designed to obtain the best result between structural deformations and vibration dumping. As optional the table can swivel CNC or manually controlled.
WHEELHEAD MOVE
SPECIFICATIONS
Height centers from 405 [mm]
Swing over table from 400 [mm]
Max lenght of external grinding 1850 [mm]
Max diameter of grinding wheel 660 [mm]
Width of grinding wheel 100 [mm]
Specifications depend on customer requests.
Swing over table from 400 [mm]
Max lenght of external grinding 1850 [mm]
Max diameter of grinding wheel 660 [mm]
Width of grinding wheel 100 [mm]
Specifications depend on customer requests.
